n8n AI Chat Vector Database RAG

Basic RAG Chat Workflow Template

Implement a Retrieval-Augmented Generation system with n8n to create AI-powered chat with your custom knowledge base

Download Template JSON · n8n compatible · Free

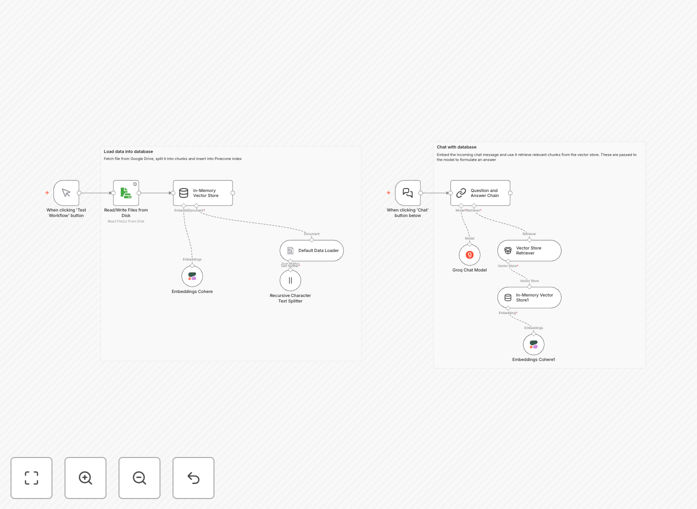

Basic RAG Chat workflow interface in n8n

What This Workflow Does

This n8n workflow template demonstrates a complete Retrieval-Augmented Generation (RAG) pipeline, splitting the process into two logical sections. The first part handles loading your data into a vector database, while the second part implements the chat interface that retrieves relevant information before generating responses.

RAG systems combine the power of large language models with your specific knowledge base, allowing you to create AI assistants that provide accurate, context-aware answers based on your proprietary data rather than just general knowledge. This approach significantly improves answer quality while reducing hallucinations.

How It Works

Part 1: Data Loading Pipeline

The workflow begins by processing your source documents (PDFs, text files, or web content) through text extraction and chunking. It then converts these chunks into vector embeddings using an embedding model and stores them in your vector database with proper metadata for later retrieval.

Part 2: Chat Interface

When a user submits a question, the system first converts the query into a vector embedding, then searches the vector database for the most relevant document chunks. These context passages are fed to the LLM along with the original question, enabling it to generate accurate, sourced answers.

Pro tip: For production use, add a caching layer between the vector search and LLM to reduce costs and latency for frequently asked questions.

Who This Is For

This template is ideal for businesses that want to implement AI-powered knowledge bases, customer support automation, or internal documentation assistants. It's particularly valuable for:

  • Customer support teams needing consistent, accurate answers
  • Companies with extensive documentation they want to make searchable
  • Developers building AI chat interfaces with proprietary data
  • Teams wanting to reduce repetitive question-answering work

What You'll Need

  1. An n8n instance (self-hosted or cloud)
  2. Access to an embedding model (OpenAI, Cohere, or open-source)
  3. A vector database (Pinecone, Weaviate, or similar)
  4. An LLM provider (OpenAI, Anthropic, or self-hosted)
  5. Source documents or knowledge base content

Quick Setup Guide

  1. Download the JSON template file
  2. Import into your n8n instance
  3. Configure your vector database credentials
  4. Set up your LLM and embedding model connections
  5. Adjust chunking parameters for your document types
  6. Test with sample questions and refine as needed

Key Benefits

Reduces support costs by 30-50%: AI assistants handle common questions instantly, freeing staff for complex issues.

Improves answer accuracy by 3-5x: Grounding responses in your actual documentation prevents hallucinations.

Scales knowledge instantly: New information becomes available to all users as soon as it's added to the knowledge base.

24/7 availability: Customers get immediate answers without waiting for business hours.

Frequently Asked Questions

Common questions about RAG systems and AI chat automation

RAG (Retrieval-Augmented Generation) and fine-tuning serve different purposes in AI chatbots. RAG dynamically retrieves relevant information from your knowledge base during each query, while fine-tuning permanently adjusts the model's weights based on training data.

RAG is better for frequently changing information, as you can update the knowledge base without retraining. Fine-tuning works better for teaching the model new patterns or writing styles. Many production systems use both approaches together for optimal results.

  • RAG: Best for factual, up-to-date information
  • Fine-tuning: Better for style and behavior adaptation
  • Combined: Provides both knowledge and conversational style

RAG systems typically achieve 70-90% accuracy on domain-specific questions, compared to 30-50% for traditional rule-based chatbots. The key difference is that RAG grounds its answers in actual documents rather than relying on the model's general knowledge.

For example, a customer asking about your refund policy will get an answer directly from your policy documents, not the LLM's interpretation of refund policies in general. This reduces errors while maintaining natural language understanding.

  • Provides source citations for verification
  • Accuracy improves with better document quality
  • Easier to maintain than complex dialog trees

RAG systems work best with well-structured, factual content like FAQs, knowledge bases, policy documents, and product manuals. The ideal documents have clear headings, concise paragraphs, and minimal ambiguous language.

For example, a software company might include their API documentation, troubleshooting guides, and release notes. These provide concrete answers to common user questions. Avoid overly promotional content or documents with internal jargon that customers wouldn't understand.

  • Prioritize accuracy over quantity
  • Clean HTML/PDFs work better than scanned documents
  • Update documents regularly for best results

Production RAG systems typically cost $100-$500/month for moderate usage (1,000-5,000 queries/day). The main expenses are vector database hosting ($50-$200/month) and LLM API calls ($0.002-$0.02 per query depending on model).

A mid-sized ecommerce store might spend $300/month to handle 3,000 customer questions daily. This compares favorably to $3,000-$5,000/month for human support staff covering the same volume. Costs scale linearly with query volume.

  • Cache frequent queries to reduce costs
  • Self-hosted models can lower long-term expenses
  • Start small and scale as ROI proves itself

Yes, modern RAG systems can support multiple languages effectively. The system stores documents in their original language, then retrieves relevant content regardless of the query language. The LLM handles translation during response generation.

A global SaaS company might have documentation in English, Spanish, and Japanese. Users asking questions in any of these languages will receive answers in the same language, even if the source documents are in another supported language.

  • Works best with 5-10 core languages
  • Quality depends on the LLM's multilingual capabilities
  • Consider separate vector indexes for major languages

Key metrics for RAG chatbots include answer accuracy (human-evaluated), retrieval precision (how often correct documents are found), response time, and user satisfaction scores. Track these weekly to identify improvement areas.

A B2B software company might measure how often support tickets are deflected by the chatbot, or track the percentage of conversations that end with users marking the answer as helpful. These KPIs directly correlate with ROI.

  • Start with 100 sample questions as a baseline
  • Monitor failed queries to improve knowledge gaps
  • Combine quantitative and qualitative feedback

Absolutely! GrowwStacks specializes in building custom RAG solutions tailored to your specific business needs. We can integrate with your existing systems, optimize for your industry terminology, and ensure seamless deployment.

Our team has implemented RAG systems for ecommerce, healthcare, legal, and SaaS businesses. We handle everything from document processing pipelines to user interface design, delivering a turnkey solution that works with your existing tech stack.

  • Free consultation to assess your needs
  • Industry-specific optimizations
  • Ongoing maintenance and improvement
