Google Cloud Run API Security n8n JWT

Securely call private Google Cloud Run APIs with JWT authentication (simplified)

Dead-simple workflow to call private APIs without exposing credentials or compromising security

Download Template JSON · n8n compatible · Free

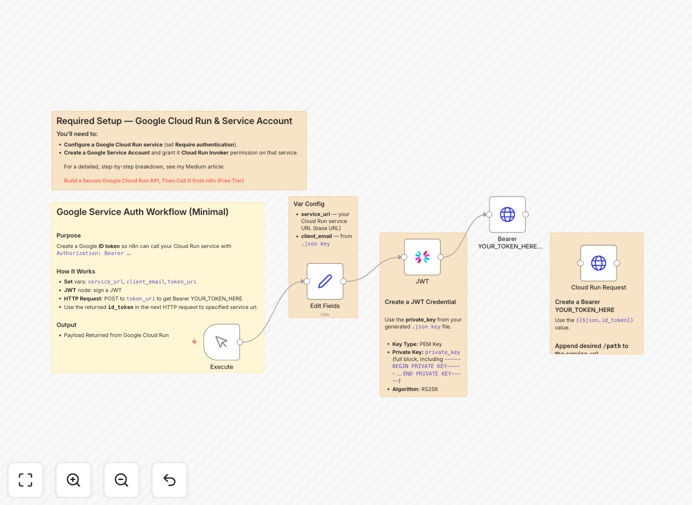

Secure API call workflow diagram

What This Workflow Does

This workflow solves the challenge of securely accessing private Google Cloud Run APIs from your n8n automation platform. Many businesses need to run custom API logic in the cloud but struggle with implementing proper authentication without complex coding. This template provides a turnkey solution that handles JWT authentication automatically.

The workflow generates properly signed JWT tokens using your Google service account credentials, attaches them to API requests, and handles token refresh cycles. It eliminates the security risks of exposing API keys while maintaining the simplicity of calling your private business logic from automation workflows.

How It Works

1. Service account credential setup

The workflow begins by securely loading your Google Cloud service account credentials. These credentials are used to sign the JWT tokens but are never exposed in API calls.

2. JWT token generation

The template automatically generates JWT tokens with the correct audience claim (your Cloud Run service URL) and sets appropriate expiration times (default 1 hour). The token is signed using RS256 algorithm for maximum security.

3. Authenticated API request

The workflow attaches the generated JWT token to the Authorization header as a Bearer token. It formats the request according to Google Cloud Run's requirements for private API access.

Pro tip: For production use, store your service account credentials in n8n's credential vault rather than hardcoding them in the workflow.

4. Response handling

The workflow includes error handling for common scenarios like expired tokens or permission issues. Failed requests automatically trigger token regeneration and retry logic when appropriate.

Who This Is For

This solution is ideal for businesses running custom API logic on Google Cloud Run that needs to be called securely from automation platforms. It's particularly valuable for:

  • Developers who want to expose internal tools as private APIs
  • Teams processing sensitive data that can't be exposed publicly
  • Companies needing to comply with security standards like HIPAA or SOC2
  • Startups using Google Cloud Run's free tier for cost-effective scaling

What You'll Need

  1. An active Google Cloud project with Cloud Run enabled
  2. A deployed Cloud Run service configured for private access
  3. A service account with Cloud Run Invoker permissions
  4. The service account's JSON key file
  5. n8n instance (cloud or self-hosted) with HTTP Request node available

Quick Setup Guide

  1. Download the JSON template file
  2. Import into your n8n instance
  3. Add your Google service account credentials to n8n's credential store
  4. Update the Cloud Run service URL in the HTTP Request node
  5. Test with a simple API call to verify authentication works
  6. Replace the example API call with your actual business logic

Key Benefits

Eliminates security risks by never exposing API keys or service account credentials in requests. The JWT tokens expire automatically and can't be reused if intercepted.

Saves development time with pre-built JWT generation logic that would typically require custom coding. The workflow handles all cryptographic signing automatically.

Maintains free-tier eligibility by using efficient authentication methods that minimize API call overhead and stay within Google Cloud's free tier limits.

Simplifies compliance with security standards by implementing industry-best practices for API authentication out of the box.

Future-proof architecture that works with Google Cloud's latest authentication requirements and can be easily adapted as standards evolve.

Frequently Asked Questions

Common questions about Google Cloud Run API security and JWT authentication

JWT (JSON Web Token) authentication is a secure method for verifying API requests. It's important because it allows private APIs to validate callers without exposing sensitive credentials. The token contains encrypted identity information and expires automatically, reducing security risks compared to API keys or basic auth.

In business scenarios, JWT helps maintain security while enabling automation. For example, a financial service might use JWT-secured APIs to process transactions without risking credential exposure. The temporary nature of JWTs limits potential damage from any security breach.

  • Tokens expire automatically after short periods
  • No sensitive credentials are transmitted
  • Supports fine-grained permission controls

Keeping APIs private prevents unauthorized access and reduces attack surfaces. Private APIs are only accessible through authenticated requests, protecting sensitive business logic and data. This is especially important for internal tools, proprietary algorithms, or systems handling regulated data.

A healthcare company might keep patient processing APIs private to comply with HIPAA, while a SaaS platform could protect customer data processing logic. Private APIs also prevent competitors from reverse-engineering your business processes through public endpoints.

  • Essential for compliance with data regulations
  • Protects intellectual property in business logic
  • Reduces infrastructure costs from bot traffic

This workflow automates the complex JWT generation process with pre-configured n8n nodes. It handles token creation, signing with service account credentials, and proper request formatting—eliminating manual coding errors. The template includes error handling and token refresh logic for reliability.

For example, an e-commerce business could use this to securely connect their inventory management system to Cloud Run APIs without writing any authentication code. The workflow manages all security aspects while they focus on business logic.

  • No cryptography knowledge required
  • Built-in error recovery mechanisms
  • Consistent implementation across your team

Yes, this workflow is designed to work within Google Cloud Run's free tier limits. It efficiently manages authentication without consuming excessive resources. The JWT approach minimizes API call overhead, helping stay within free tier quotas while maintaining security.

Startups often use this combination to prototype secure microservices without upfront costs. The workflow's lightweight authentication adds minimal latency, preserving Cloud Run's fast cold start times that make the free tier practical for many use cases.

  • Optimized for free tier request limits
  • Minimal compute resource usage
  • Scalable to paid tiers when needed

This setup excels for business logic that needs secure, scalable execution. Common use cases include data processing pipelines, internal microservices, proprietary calculations, and systems that integrate with other Google Cloud services. The private API approach works well for sensitive operations.

A marketing agency might process client analytics data through private APIs, while a logistics company could calculate optimal routes without exposing their algorithms. Any business logic that provides competitive advantage benefits from this secure encapsulation.

  • Data transformation and enrichment
  • Proprietary algorithms and calculations
  • Regulated data processing workflows

This JWT approach provides similar security to API Gateway but with more flexibility and lower cost. It's ideal when you need direct control over authentication logic or want to avoid API Gateway's pricing structure. The workflow maintains security while keeping implementation simple.

While API Gateway offers additional features like rate limiting, this solution gives developers more customization options. Businesses often choose this path when they already have n8n in their stack and want to minimize additional Google Cloud services.

  • No additional Google Cloud service required
  • Full control over authentication logic
  • Easier to customize for specific use cases

Absolutely. GrowwStacks specializes in custom Google Cloud automation solutions. Our team can design secure API architectures tailored to your specific business requirements, including advanced authentication patterns, custom scaling configurations, and integration with your existing systems.

We've helped businesses across industries implement secure Cloud Run solutions - from healthcare data processors to financial analytics platforms. Our experts handle the complex security configurations while you focus on your core business logic.

  • Tailored to your exact security requirements
  • Integration with your existing tech stack
  • Ongoing support and optimization
